  • 347 Stainless Steel Strip
  • 347 Stainless Steel Strip
  • 347 Stainless Steel Strip

›

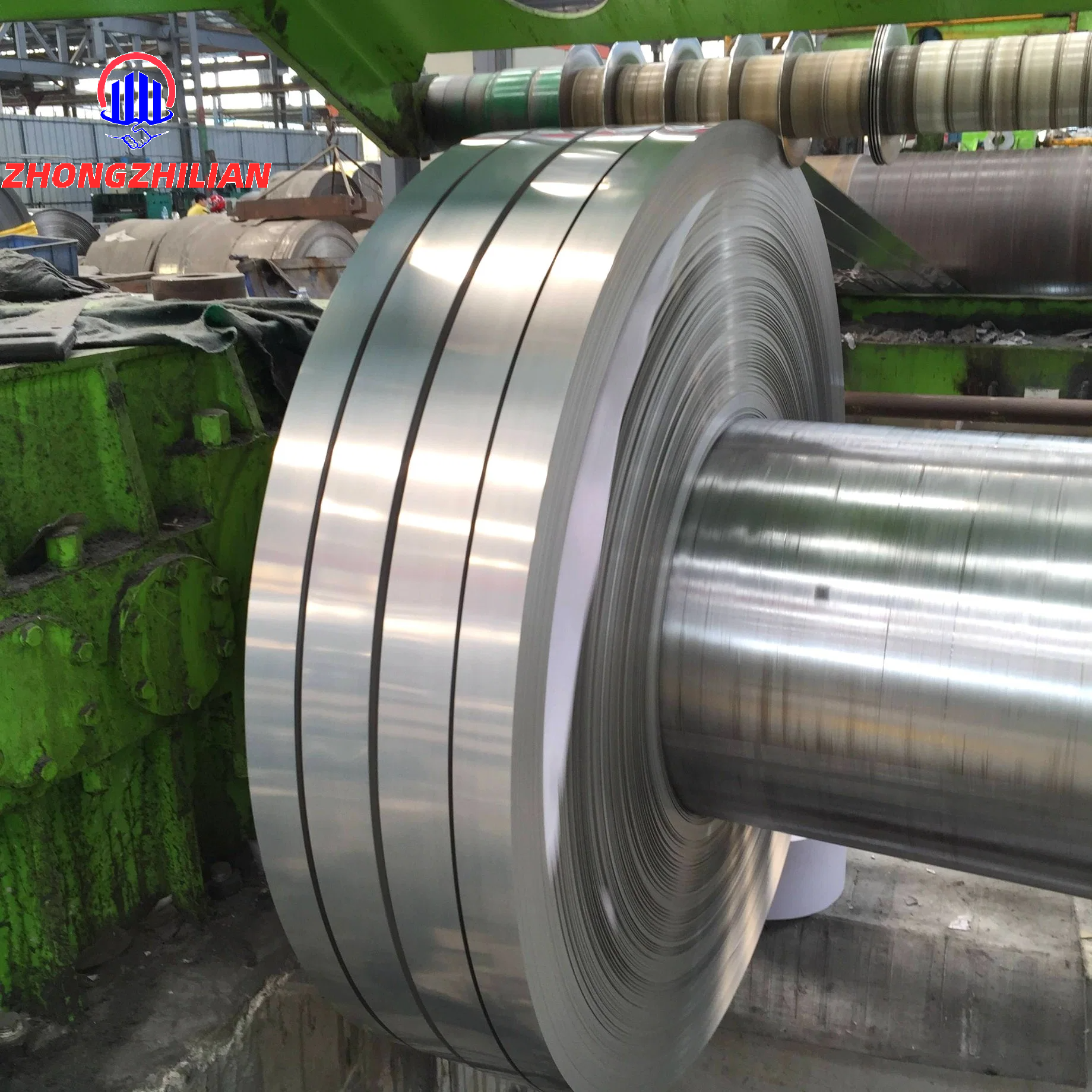

347 Stainless Steel Strip
Material Grade: 201/202/304/304l/316/316l/321/309s/310s/410/420/430/904l
Type: Stainless Steel
Category: CRC and HRC
Size: According to the customer's requests
Main chemical composition: C, Si, Mn, Cr, P, S
Advantage: Reasonable price and abundant stock
Standards: AISI ASTM JIS SUS and GB
Certifications: ISO 9001,SGS,BV

For our full product, please contact us

CONTACT US

Product Description

Stainless steel does not stain, corrode, or rust as easily as regular carbon steel and provides high strength and impact resistance along with the aesthetic appeal.

The material also has anti-bacterial qualities and is easy to clean and sanitize.





Specification



Product Name:Stainless Steel Strip
Standard:ASTM, AISI, JIS, GB, DIN, EN
Certification:ISO, SGS, BV
Place of Origin:Jiangsu, China
TechniqueCold Rolled or Hot Rolled
Thickness:0.1-20 mm /Customized
Width:10-1000 mm or as requirement
Length10-12000 mm or as requirement
Grade200/300/400/500/600/900(series)
Material

201, 202, 304, 304L, 304H, 310S, 316, 316L, 316Ti, 321,

330, 347H, 409L, 410, 410S, 416, 430, 630, 660, 2Cr13, 3Cr13 etc

Surface:

BA, 2B, NO.1, NO.4, 4K, HL, 8K Hairline, Embossed, Etched,

Vibration, PVD Color Coated, Titanium, Sand Blasted, Anti-fingerprint

MOQ:1 Ton
Price TermCIF CFR CNF FOB EX-WORKPayment Terms
Payment TermsT/T  L/C and Western Union etc
Application

Petroleum, Chemistry, Electricity, Paper Making, Alkali Making,

Irrigation Works, Automotive, Salt, Medicine, Food, Public Facilities

Delivery Time7-15 days or according to the order's quantity
Package

Standard export seaworthy package,suit for all kinds of transport, or as required.

Water-proof Paper + Edge protection + Wooden Pallets

Container Size20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)

40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)

40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High)


Product Display

Surface finishDefinationApplication
2B

Those finish,after cold rolling, by heat treatment or other equivialent treatment and lastly

 by cold rolling to given appropriate luster

Medical equipment, food industry, construction material, kitchen utensils
BAMedical equipment, food industry, construction material, kitchen utensilsKitchen utensils, electric equipment, buliding construction
N0.4Those finished by polishing with NO.180 abrvsivea specified in JIN R6001Kitchen utensils, buliding construction, medical equipement
HLThose finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain sizeBuliding construction
8KA mirror like reflective surface by polidhing with finer abrasivea over 800 meshReflector, mirror, interor-exterior decoration

Stainless Steel Composition Chart, Percentage (%)
GradeC, ≤Mn, ≤P, ≤S, ≤Si, ≤CrNiMoN, ≤
3040.0820.0450.03118.0-20.08.0-11.0--
304L0.0320.0450.03118.0-20.08.0-11.0--
3160.0820.0450.03116.0-18.010.0-14.02.00-3.00-
316L0.0320.0450.03116.0-18.010.0-14.02.00-3.00-
3210.0820.0450.03117.0-19.09.0-12.0-0.1
2010.155.50-7.500.060.03116.0-18.03.5-5.5-0.25
3010.1520.0450.03116.0-18.06.0-8.0-0.1
3020.1520.0450.030.7517.0-19.08.0-10.0-0.1
3030.1520.2≥0.15117.0-19.08.0-10.0--
3050.1220.0450.03117.0-19.011.0-13.0--
3080.0820.0450.03119.0-21.010.0-12.0--
309S0.0820.0450.03122.0-24.012.0-15.0--
310S0.0820.0450.031.524.0-26.019.0-22.0--
310H0.04-0.1020.0450.030.7524.0-26.019.0-22.0--
316Ti0.0820.0450.03116.0-18.010.0-14.02.00-3.000.1
317L0.0320.0450.030.7518.0-20.011.0-15.03.0-4.00.1
321H0.04-0.1020.0450.030.7517.0-19.09.0-12.0--
347H0.04-0.1020.0450.030.7517.0-19.09.0-13.0--
348H0.04-0.1020.0450.030.7517.0-19.09.0-13.0--
22050.0320.030.02122.0-23.04.5-6.53.0-3.50.14-0.20
25070.031.20.0350.020.824.0-26.06.0-8.03.0-5.00.24-0.32
4100.08-0.1510.040.03111.5-13.5---
4200.15, ≥10.040.03112.0-14.0---
4300.1210.040.03116.0-18.0---
440A0.60-0.7510.040.03116.0-18.0-≤0.75-
440B0.75-0.9510.040.03116.0-18.0-≤0.75-
440C0.95-1.2010.040.03116.0-18.0-≤0.75-
440F0.95-1.201.250.060.15116.0-18.00.5--
800H0.05-0.101.50.0450.015119.0-23.030.0-35.0--
904L0.0220.0450.035119.0-23.023.0-28.04.00-5.000.1
15-5 PH0.0710.040.03114.0-15.53.5-5.5--
17-4 PH0.0710.040.03115.5-17.53.0-5.0--
17-7 PH0.0910.040.04116.0-18.06.5-7.75--

Manufacturing Technique

Stainless steel strip process: if be annealed stainless steel should be used chemical NG - 9-1 to black, have the oil with NZ - B in addition to the first oil to oil - water - electrochemical finishing polish king (directly using the fluid as working fluid,

temperature of 60 ~ 80 ºC, hang anode workpiece, current Da: 20 to 15 a/dm2, cathode - to lead antimony alloy antimony (including 8%) time: 1 ~ 10 minutes, cast light) - water - 5 ~ 8% hydrochloric acid membrane back (at room temperature: 1 ~ 3 seconds) to water washing, blow dry.


About US

Good Quality Makes Us Different!

* All stainless steel strip products are produced by ISO9001 certified mill !
* All stainless steel strip products are EN10204:2004 3.1 Certified !
* Non-destructive Testing Reports are available if required !
* Heat Treatment Reports are available if required !
* Mechanical Testing Reports are available if required !

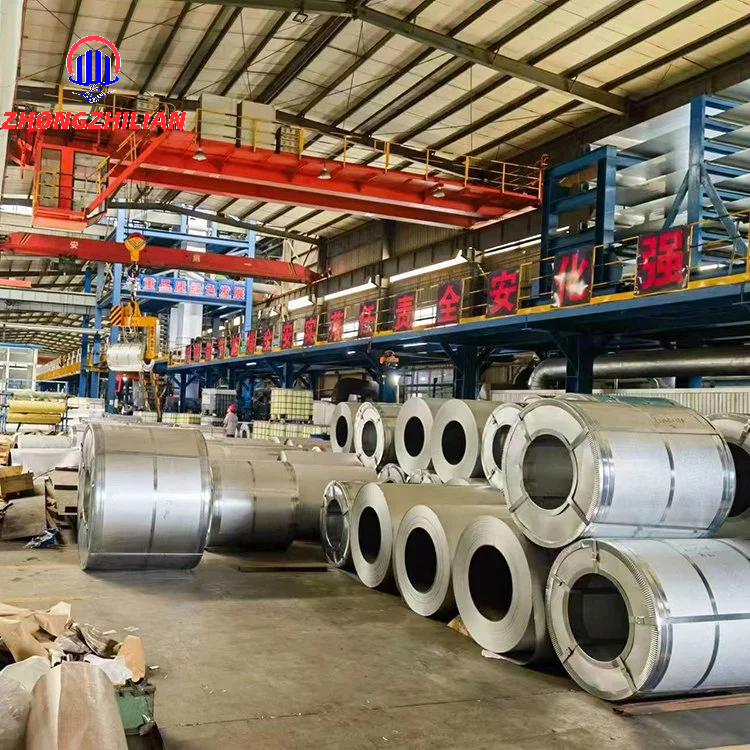

Jiangsu Zhongzhilian Steel Industry Co., Ltd. is located in Jiangsu Province. It is one of stainless steel bases in China.

Our factory covers an area of 80,000 square meters. We are one of the Jiangsu stainless steel manufacturers.


Our main products include stainless steel pipe, stainless steel plate, stainless steel bar, stainless steel coil, stainless i-beam,

stainless angle steel, stainless steel channel, aluminum plate, aluminum pipe, aluminum rod, carbon steel plate, carbon steel pipe,

carbon coils, carbon steel bar, galvanized sheet, galvanized pipe, copper sheet, brass sheet, hardox plate, Hastelloy alloy, etc.


Our company has the most advanced production equipment which guarantees the most advantageous product quality.

Based on highly quality products and the best service, we have developed clients all around the world, our products are widely used in industry in USA,

Germany, Spain, UK, UAE, Saudi Arabia, Indonesia, Türkiye, Australia, South Korea, Vietnam, Uzbekistan, Singapore, and so on.


The specifications are complete and the price is favorable. Our company can order various non-standard specifications on behalf of customers,

special material steel products, can be delivered to your door, ordering quickly.





Product Application

Stainless steel strip provide a low maintenance, corrosion resistance solution for a variety of industrial
applications. Some of the typical uses for stainless steel include:
* Food Processing & Handling
* Storage Tanks
* Heat Exchangers
* Electrical Enclosures
* Chemical Process Vessels
* Conveyors
* Architectural & Construction
* Marine Parts & Equipment


Packing & Delivery


FAQ


Q1. Where is your factory ?
A1: Our company's processing center is located in Jiangsu, Wuxi, China.
Which is well equipped with kinds of machines, such as laser cutting machine,mirror polishing machine and so on.
We can provide a wide range of personalized services according to the customers' needs.


Q2. What are your company's main products ?
A2: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.

Q3. How do you control quality ?
A3: Mill Test Certification is supplied with shipment, Third Party Inspection is available.

Q4. What are the advantages of your company ?
A4: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.

Q5. How many coutries you already exported ?
A5: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt,Turkey, Jordan, India, etc.

Q6. Can you provide sample ?
A6: Small samples in store and can provide the samples for free.
Customized samples will take about 5-7days.
