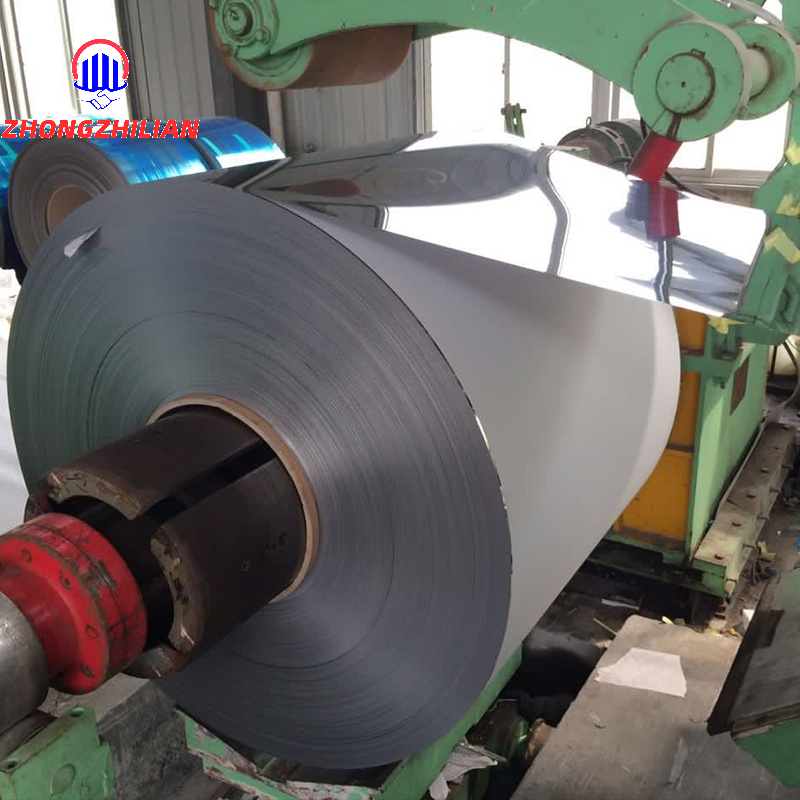

309S Stainless Steel Coil

Material Grade: 201/202/304/304l/316/316l/321/309s/310s/410/420/430/904l
Type: Stainless Steel
Category: CRC and HRC
Size: According to the customer's requests
Main chemical composition: C, Si, Mn, Cr, P, S
Advantage: Reasonable price and abundant stock
Standards: AISI ASTM JIS SUS GB
Certifications: ISO 9001,SGS,BV

For our full product, please contact us

Product Description

Stainless steel does not stain, corrode, or rust as easily as regular carbon steel and provides high strength and impact resistance along with the aesthetic appeal. The material also has anti-bacterial qualities and is easy to clean and sanitize.

Specification

Product Name:	Stainless Steel Coil
Standard:	ASTM, AISI, JIS, GB, DIN, EN
Certification:	ISO, SGS, BV
Place of Origin:	Jiangsu, China
Technique	Cold Rolled Hot Rolled
Thickness	0.03mm-300mm or as required
Width	40mm-600mm, 1000mm, 1219mm, 1500mm
Length	2000mm, 2438mm, 3000mm, 5800mm, 6000mm,12000mm, etc
Grade	200/300/400/500/600/900(series)
Material	201, 202, 304, 304L, 304H, 310S, 316, 316L, 316Ti, 321, 330, 347H, 409L, 410, 410S, 416, 430, 630, 660, 904L, 2Cr13, 3Cr13 etc
MOQ:	1 Ton
Price Term	CIF CFR CNF FOB EX-WORK Payment Terms
Payment Terms	T/T L/C and Western Union etc
Delivery Time	7-15 days or according to the order's quantity
Package	Standard export seaworthy package,suit for all kinds of transport, or as required. Water-proof Paper + Edge protection + Wooden Pallets
Container Size	20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High)

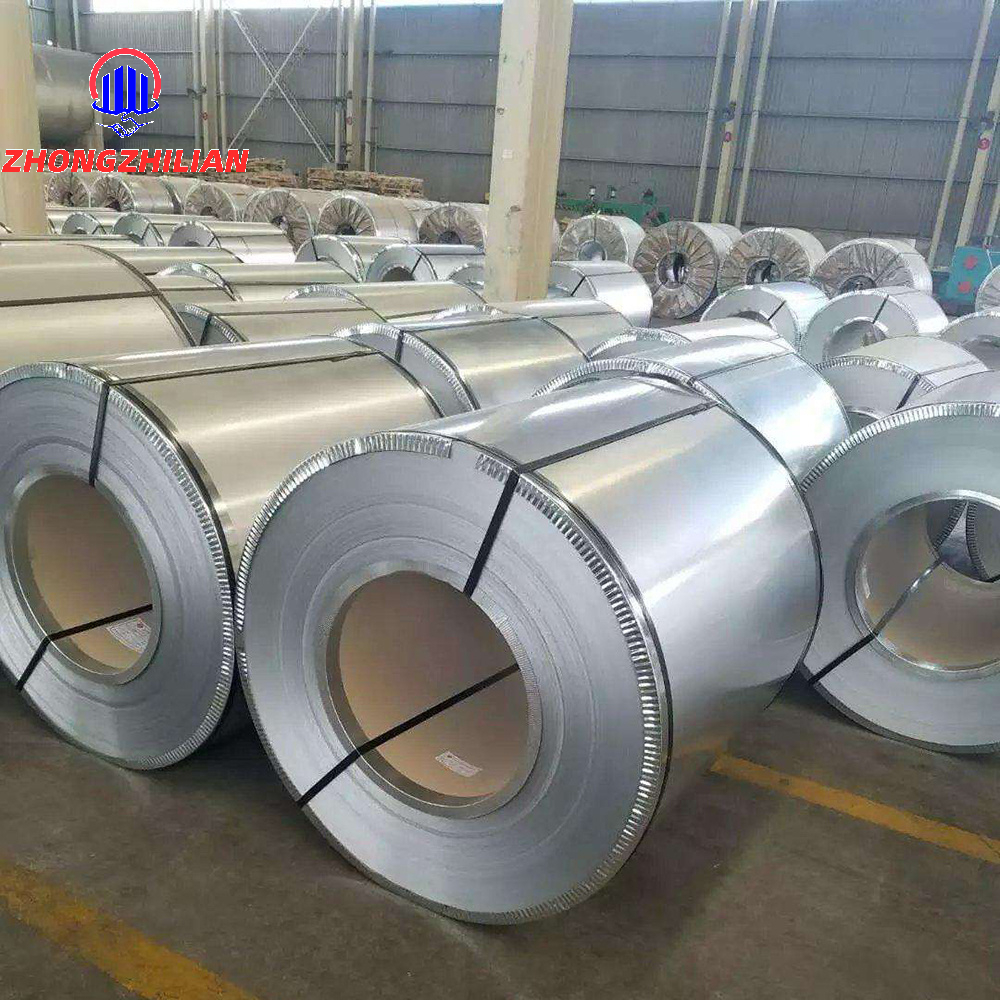

Product Display

Surface Finish	Defination	Application
2B	Those finish,after cold rolling, by heat treatment or other equivialent treatment and lastly by cold rolling to given appropriate luster	Medical equipment, food industry, construction material, kitchen utensils
BA	Medical equipment, food industry, construction material, kitchen utensils	Kitchen utensils, electric equipment, buliding construction
N0.4	Those finished by polishing with NO.180 abrvsivea specified in JIN R6001	Kitchen utensils, buliding construction, medical equipement
HL	Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size	Buliding construction
8K	A mirror like reflective surface by polidhing with finer abrasivea over 800 mesh	Reflector, mirror, interor-exterior decoration

Stainless Steel Composition Chart, Percentage (%)
Grade	C, ≤	Mn, ≤	P, ≤	S, ≤	Si, ≤	Cr	Ni	Mo	N, ≤
304	0.08	2	0.045	0.03	1	18.0-20.0	8.0-11.0	-	-
304L	0.03	2	0.045	0.03	1	18.0-20.0	8.0-11.0	-	-
316	0.08	2	0.045	0.03	1	16.0-18.0	10.0-14.0	2.00-3.00	-
316L	0.03	2	0.045	0.03	1	16.0-18.0	10.0-14.0	2.00-3.00	-
321	0.08	2	0.045	0.03	1	17.0-19.0	9.0-12.0	-	0.1
201	0.15	5.50-7.50	0.06	0.03	1	16.0-18.0	3.5-5.5	-	0.25
301	0.15	2	0.045	0.03	1	16.0-18.0	6.0-8.0	-	0.1
302	0.15	2	0.045	0.03	0.75	17.0-19.0	8.0-10.0	-	0.1
303	0.15	2	0.2	≥0.15	1	17.0-19.0	8.0-10.0	-	-
305	0.12	2	0.045	0.03	1	17.0-19.0	11.0-13.0	-	-
308	0.08	2	0.045	0.03	1	19.0-21.0	10.0-12.0	-	-
309S	0.08	2	0.045	0.03	1	22.0-24.0	12.0-15.0	-	-
310S	0.08	2	0.045	0.03	1.5	24.0-26.0	19.0-22.0	-	-
310H	0.04-0.10	2	0.045	0.03	0.75	24.0-26.0	19.0-22.0	-	-
316Ti	0.08	2	0.045	0.03	1	16.0-18.0	10.0-14.0	2.00-3.00	0.1
317L	0.03	2	0.045	0.03	0.75	18.0-20.0	11.0-15.0	3.0-4.0	0.1
321H	0.04-0.10	2	0.045	0.03	0.75	17.0-19.0	9.0-12.0	-	-
347H	0.04-0.10	2	0.045	0.03	0.75	17.0-19.0	9.0-13.0	-	-
348H	0.04-0.10	2	0.045	0.03	0.75	17.0-19.0	9.0-13.0	-	-
2205	0.03	2	0.03	0.02	1	22.0-23.0	4.5-6.5	3.0-3.5	0.14-0.20
2507	0.03	1.2	0.035	0.02	0.8	24.0-26.0	6.0-8.0	3.0-5.0	0.24-0.32
410	0.08-0.15	1	0.04	0.03	1	11.5-13.5	-	-	-
420	0.15, ≥	1	0.04	0.03	1	12.0-14.0	-	-	-
430	0.12	1	0.04	0.03	1	16.0-18.0	-	-	-
440A	0.60-0.75	1	0.04	0.03	1	16.0-18.0	-	≤0.75	-
440B	0.75-0.95	1	0.04	0.03	1	16.0-18.0	-	≤0.75	-
440C	0.95-1.20	1	0.04	0.03	1	16.0-18.0	-	≤0.75	-
440F	0.95-1.20	1.25	0.06	0.15	1	16.0-18.0	0.5	-	-
800H	0.05-0.10	1.5	0.045	0.015	1	19.0-23.0	30.0-35.0	-	-
904L	0.02	2	0.045	0.035	1	19.0-23.0	23.0-28.0	4.00-5.00	0.1
15-5 PH	0.07	1	0.04	0.03	1	14.0-15.5	3.5-5.5	-	-
17-4 PH	0.07	1	0.04	0.03	1	15.5-17.5	3.0-5.0	-	-
17-7 PH	0.09	1	0.04	0.04	1	16.0-18.0	6.5-7.75	-	-

Why Choose Us

Manufacturing Technique

Stainless steel coil process: if be annealed stainless steel should be used chemical NG - 9-1 to black, have the oil with NZ - B in addition to the first oil to oil - water - electrochemical finishing polish king (directly using the fluid as working fluid,
temperature of 60 ~ 80 ºC, hang anode workpiece, current Da: 20 to 15 a/dm2, cathode - to lead antimony alloy antimony (including 8%) time: 1 ~ 10 minutes, cast light) - water - 5 ~ 8% hydrochloric acid membrane back (at room temperature: 1 ~ 3 seconds) to water washing, blow dry.

About US

Good Quality Makes Us Different!

* All stainless steel coil products are produced by ISO9001 certified mill !
* All stainless steel coil products are EN10204:2004 3.1 Certified !
* Non-destructive Testing Report are available if required !
* Heat Treatment Report are available if required !
* Mechanical Testing Report are available if required !

Jiangsu Zhongzhilian Steel Industry Co., Ltd. is located in Jiangsu Province. It is one of stainless steel bases in China.

Our factory covers an area of 80,000 square meters. We are one of the Jiangsu stainless steel manufacturers.

Our main products include stainless steel pipe, stainless steel plate, stainless steel bar, stainless steel coil,

stainless i-beam, stainless angle steel, stainless steel channel, aluminum plate, aluminum pipe, aluminum rod,

carbon steel plate, carbon steel pipe, carbon coils, carbon steel bar, galvanized sheet, galvanized pipe, copper sheet,

brass sheet, hardox plate, Hastelloy alloy, etc.

Our company has the most advanced production equipment which guarantee the most advantageous product quality.

Based on highly quality products and the best service, we have developed clients all around the world, our products are widely used in industry in USA,

Germany, Spain, UK, UAE, Saudi Arabia, Indonesia, Türkiye, Australia, South Korea, Vietnam, Uzbekistan, Singapore, and so on.

The specifications are complete and the price is favorable. Our company can order various non-standard specifications on behalf of customers,

special material steel products, can be delivered to your door, ordering quickly.

Service and commitment:

Service three guarantees: guarantee quality, guarantee time, guarantee quantity.

Service tenet: strong strength, high quality products, low price, first-class service.

Solemn promise: Reply to the trust of the old and new customers with the best products, the best quality, the lowest price and the most perfect service.

Operating principles: customer first, Excellent quality, great variety, and reasonable price.

Jiangsu Zhongzhilian Steel Industry Co., Ltd. will serve the majority of users with good reputation, strong strength, high quality products, and low prices.

I would like to express my heartfelt thanks to the old and new friends and customers who have always cared, supported, and helped the company!

And sincerely hope to establish long-term cooperative relations with them, mutual benefit, and common development.

Product Application

Stainless steel coil provide a low maintenance, corrosion resistance solution for a variety of industrial
applications. Some of the typical uses for stainless steel include:

* Food Processing & Handling
* Storage Tanks
* Heat Exchangers
* Electrical Enclosures
* Chemical Process Vessels
* Conveyors
* Architectural & Construction
* Marine Parts & Equipment


